MVD INAN HGM 3006 Hydraulic Swing Beam Shear

General Information

Manufacturer: MVD INAN Machine Tool Industry Co.

Model: HGM 3006

Machine Type: Hydraulic Swing Beam Shear

Year of Manufacture: 2006

Condition: Used – Good Working Condition

Location: Belgium

Availability: Immediate

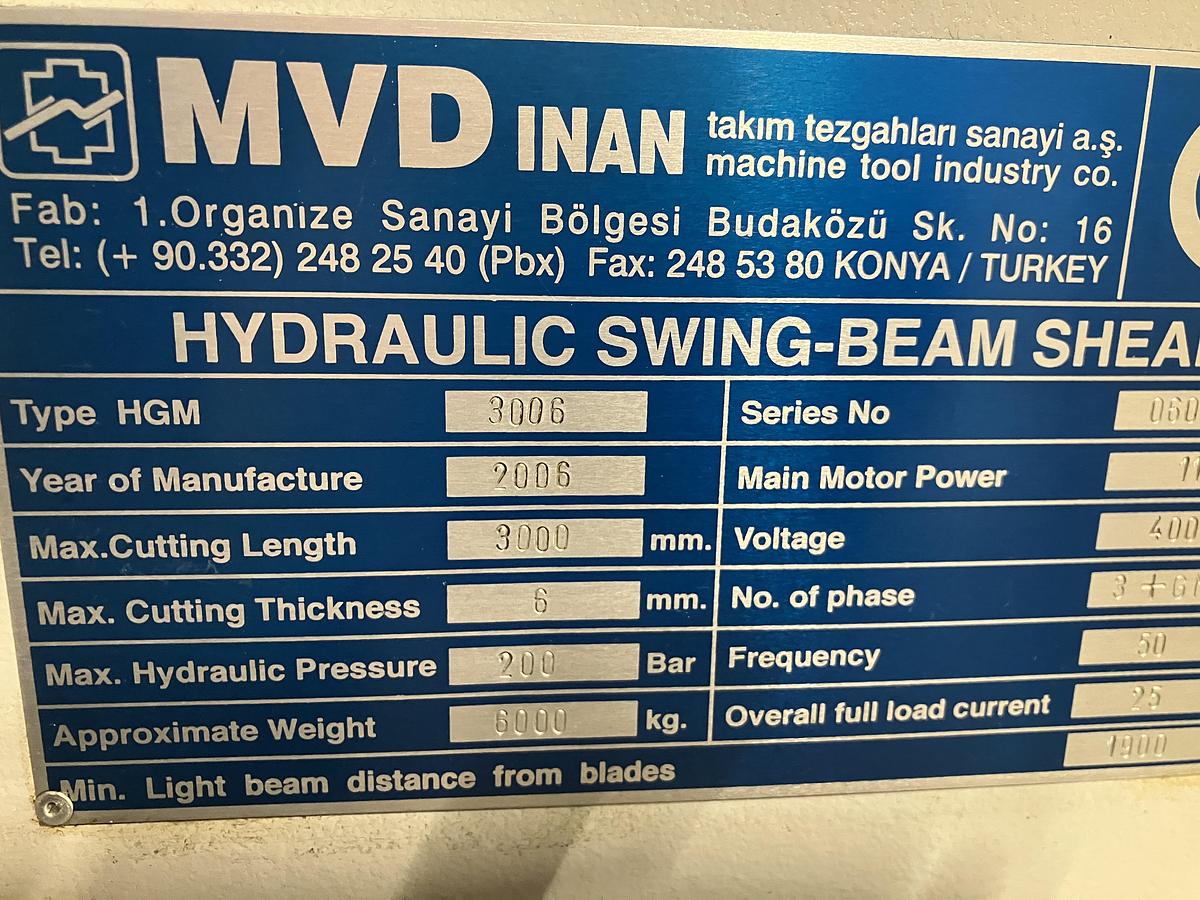

Technical Specifications

Cutting Length: 3,000 mm

Maximum Cutting Thickness: 6 mm

Hydraulic System Pressure: 200 bar

Main Motor Power: 7.5 kW

Power Supply: 400 V

Electrical Configuration: 3 Phase + Neutral

Frequency: 50 Hz

Full Load Current: 25 A

Machine Weight: 6,000 kg

Minimum Light Beam Distance from Blades: 1,200 mm

Description

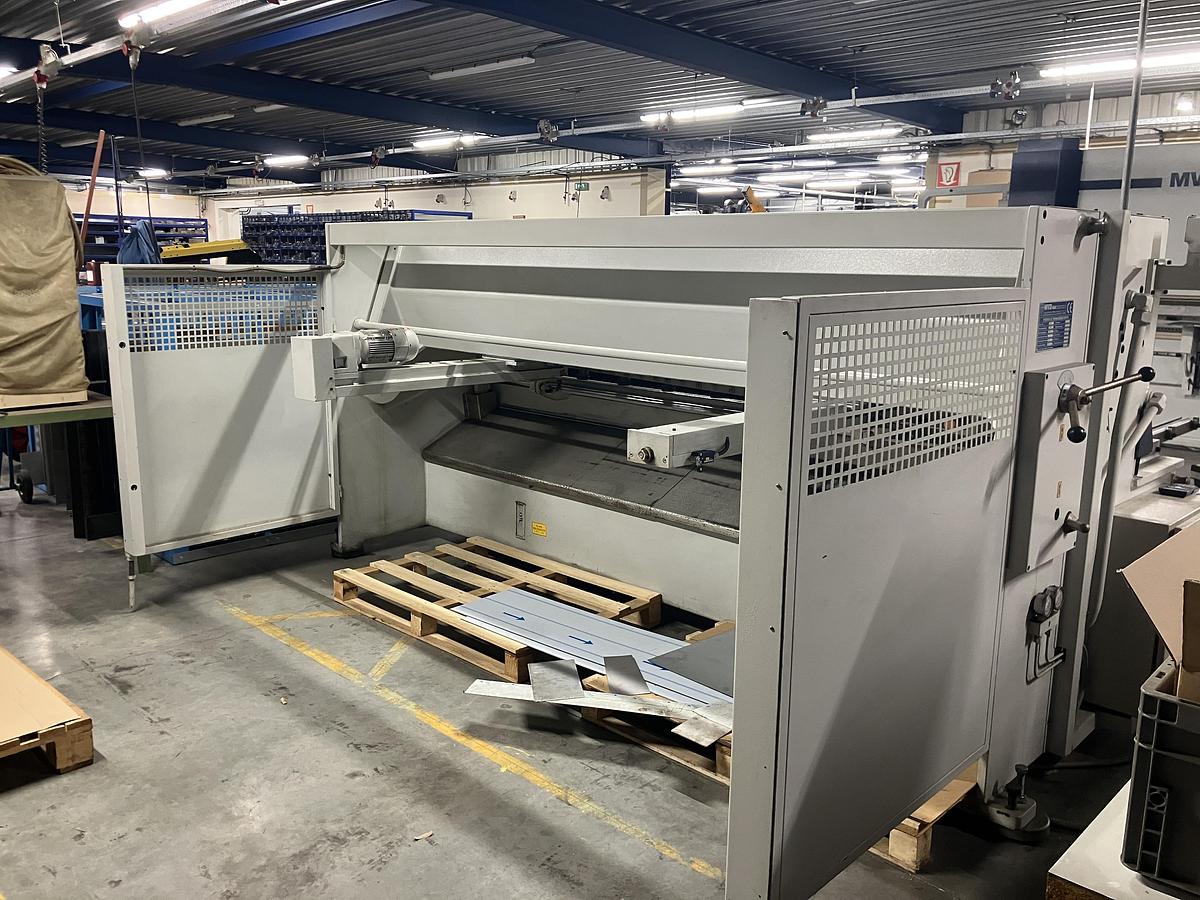

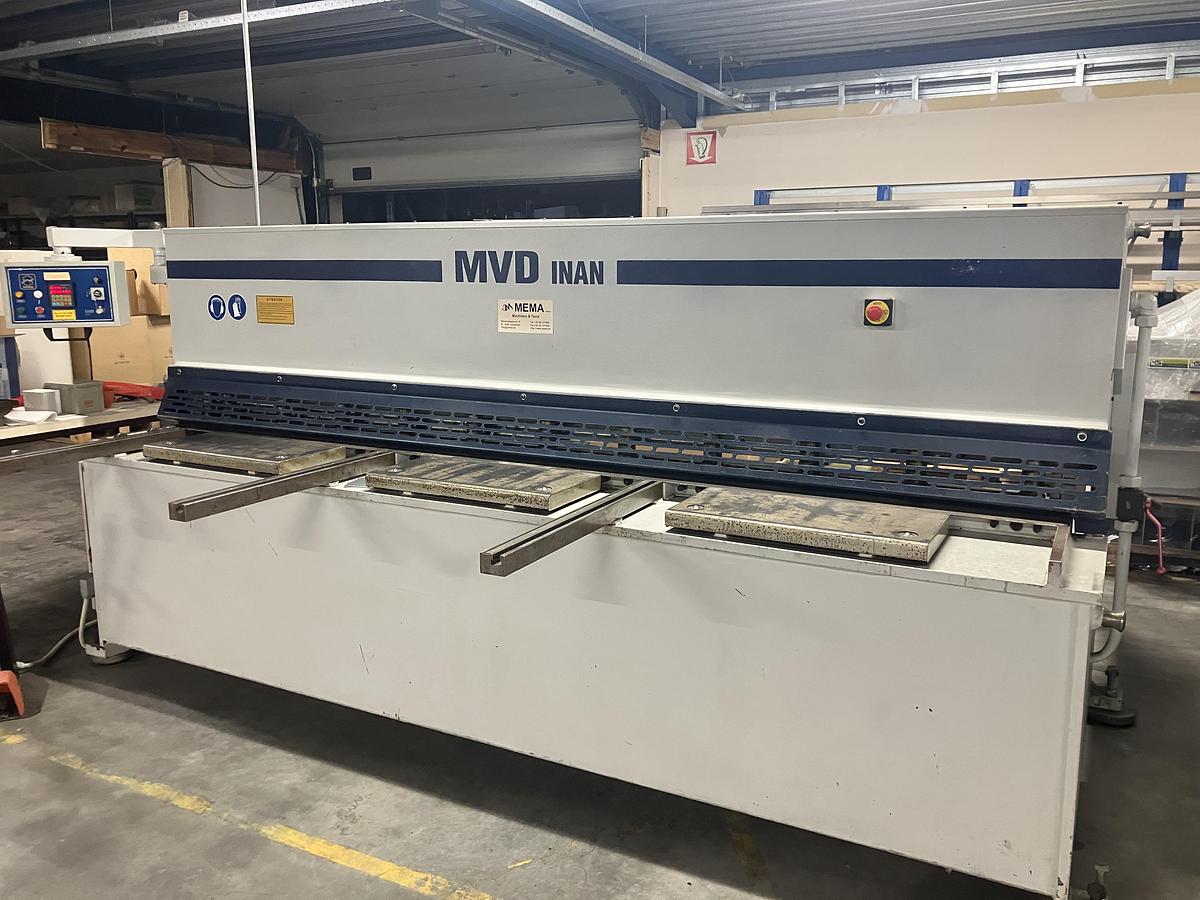

Well-maintained MVD INAN HGM 3006 Hydraulic Swing Beam Shear with a cutting capacity of 3,000 mm x 6 mm.

This robust hydraulic guillotine shear is designed for accurate and reliable sheet metal cutting in industrial production environments. The machine is suitable for steel fabricators, sheet metal workshops, subcontractors, and general manufacturing operations.

The heavy-duty frame construction and hydraulic swing beam design provide consistent cutting quality and excellent reliability.

The machine is available for inspection and can be demonstrated under power.

Please Note:

The information was obtained to the best of our abilities and - where possible - from the manufacturers.

It is given in good faith, however, its accuracy cannot be guaranteed. Accordingly, it will not form a representation or constitute contractual terms.

Specific tooling must be requested before purchasing because in most cases the offered machines are still in production when the pictures were taken.

We advise you to check any vital details!
