2018 BYSTRONIC ByStar 3015 Fiber 10 KW + ByLoader

For sale: Bystronic ByStar Fiber 3015 equipped with a 10 kW fiber laser source and automated ByLoader 3015 loading system.

A high-performance laser cutting solution designed for fast, precise, and cost-efficient sheet metal processing.

Available : 2026

The machine can be inspected under power and demonstrated in operation by appointment.

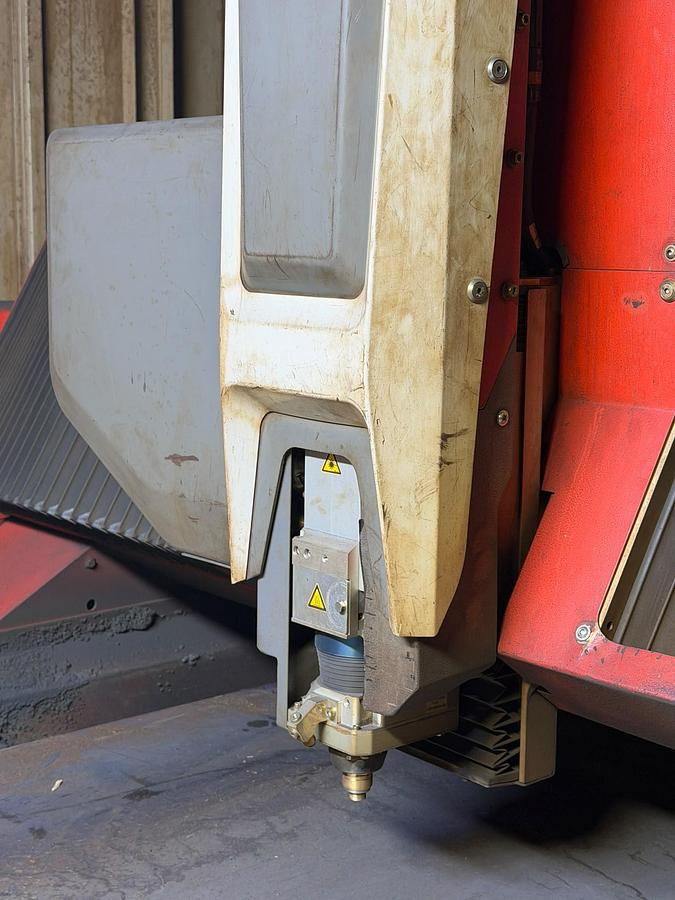

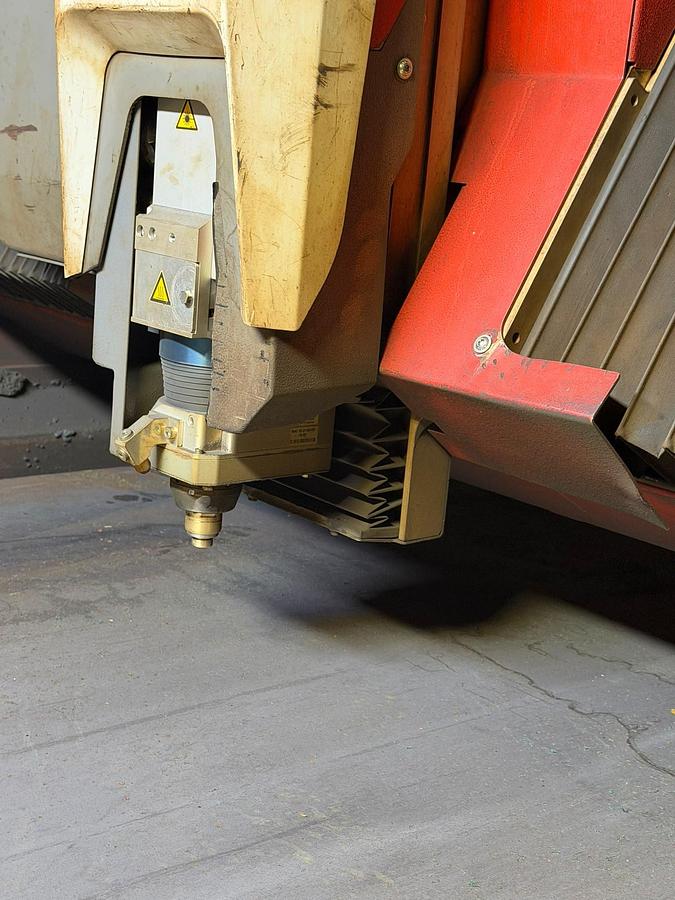

New cutting head : 06/2026

Technical Specifications

Manufacturer: Bystronic

Model: ByStar Fiber 3015

Laser Type: Fiber Laser

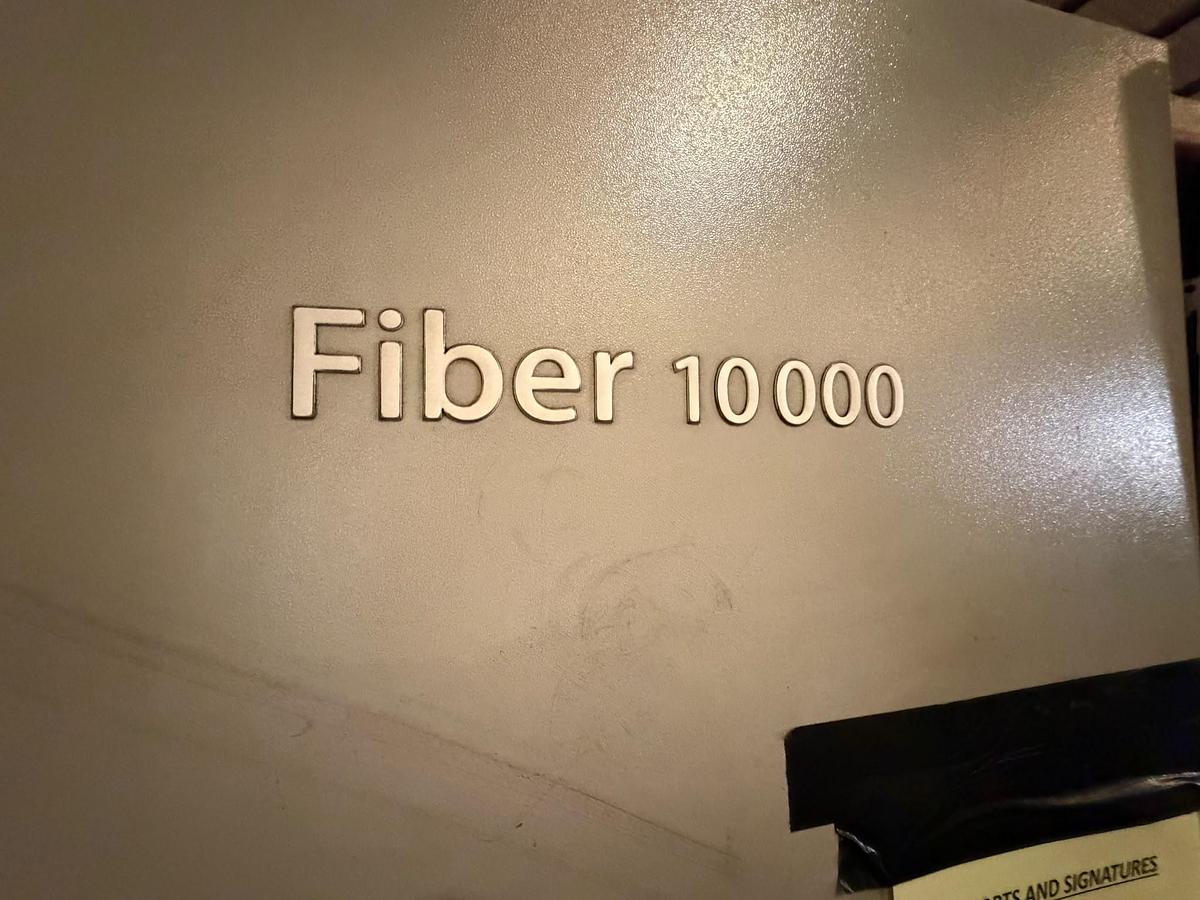

Laser Power: 10 kW

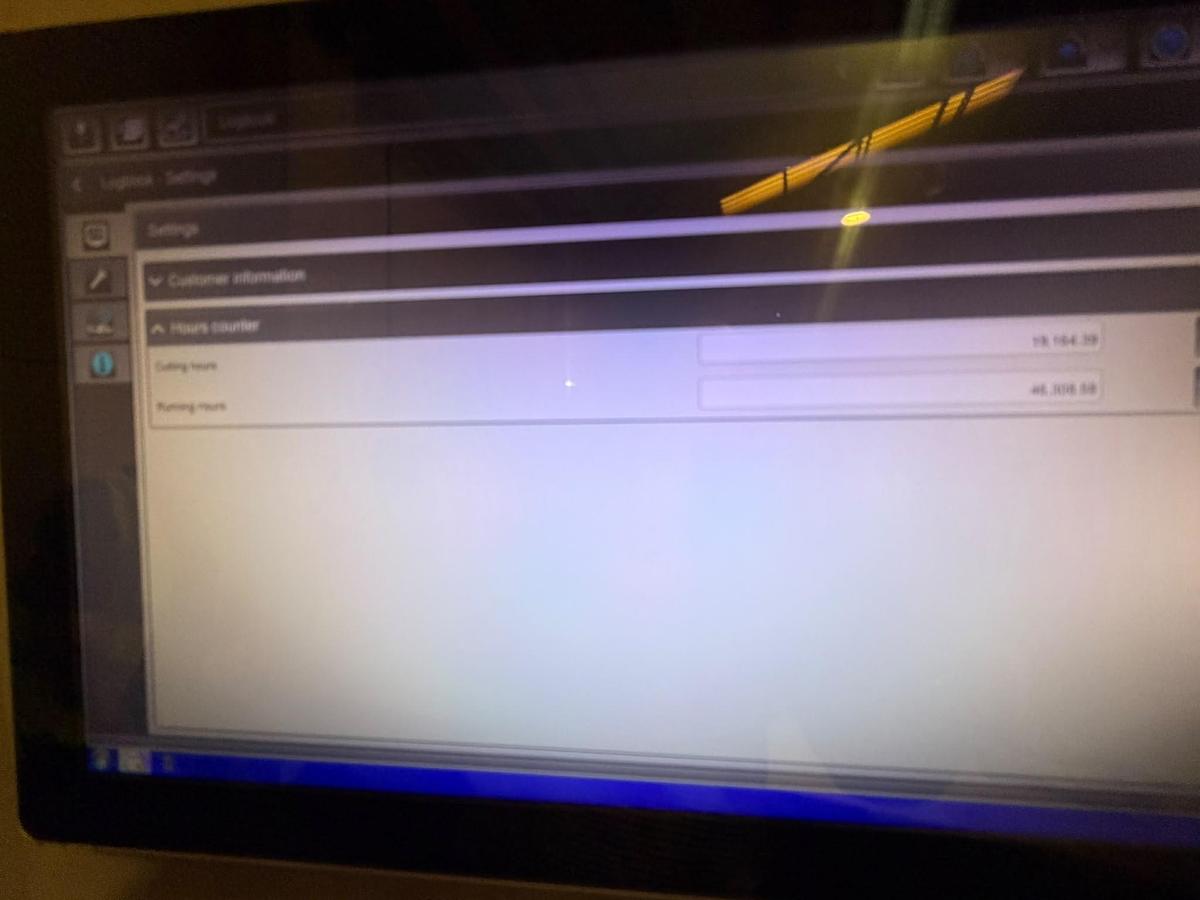

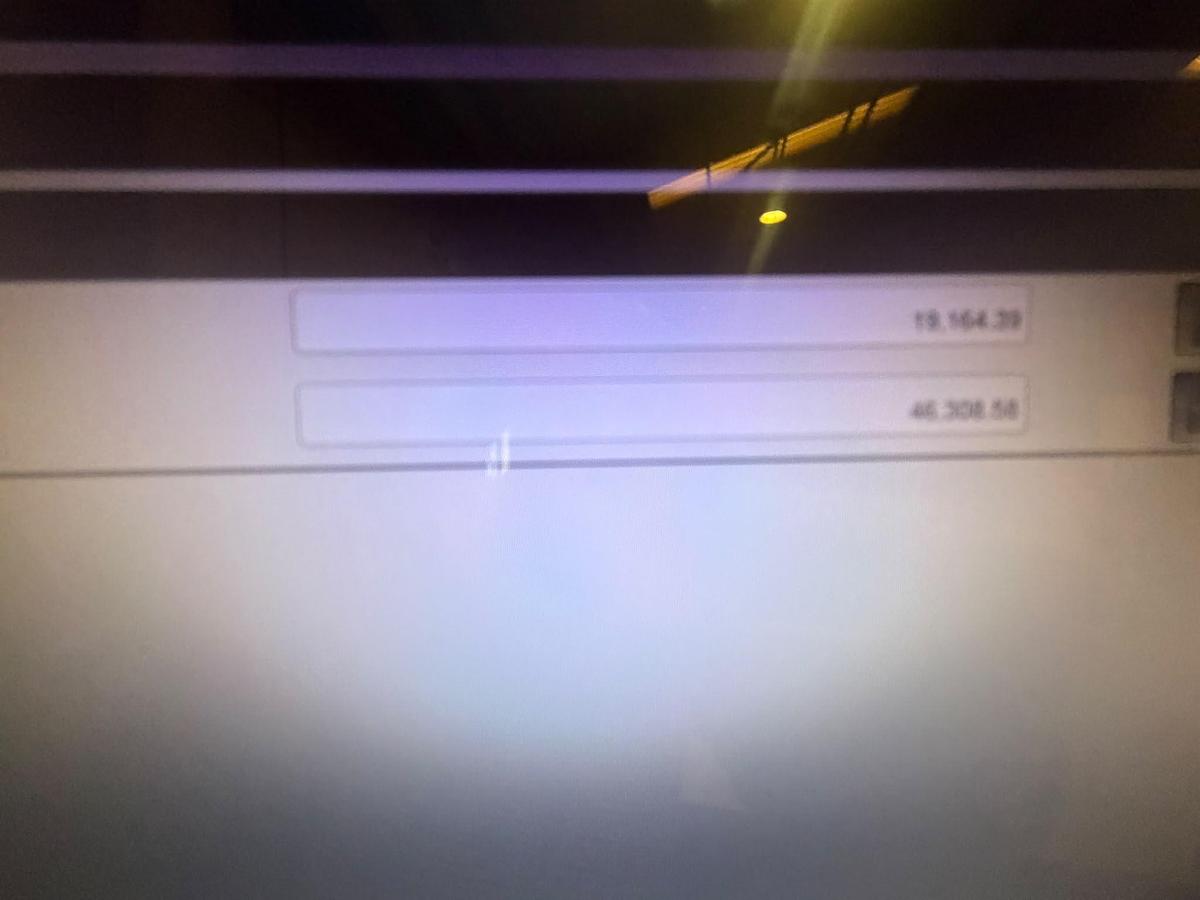

Cutting hours : 19564h

Sheet Format: 3,000 × 1,500 mm

Working Area (X × Y × Z): 3,100 × 1,580 × 100 mm

Maximum Positioning Speed: 120 m/min (X/Y), 170 m/min simultaneous

Maximum Workpiece Weight: 1,100 kg

Average Power Consumption: Approx. 25 kW (including extraction and chiller)

Options

BeamShaper

Power cut

Parameter wizard

Maximum Cutting Capacities*

Mild Steel: up to 25 mm

Stainless Steel: up to 30 mm

Aluminium: up to 30 mm

Brass: up to 15 mm

Copper: up to 12 mm

*Cutting capacities may vary depending on material quality and machine condition.

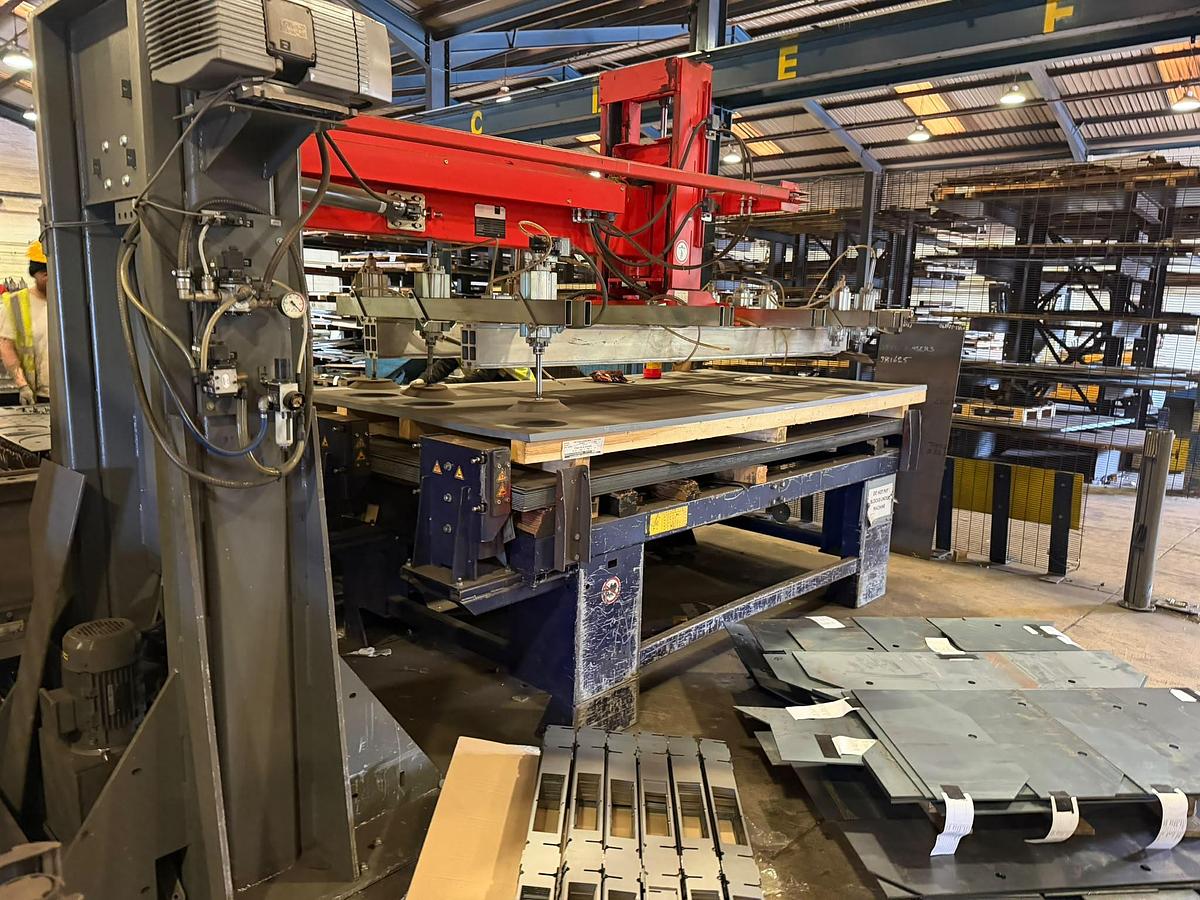

ByLoader 3015 Automatic Loading System

Sheet size capacity: 3,000 × 1,500 mm

Sheet thickness range: 0.8 – 25 mm

Maximum sheet weight: 890 kg

Automated loading for increased productivity and reduced handling times

Dimensions & Weight

Machine Dimensions (L × W × H): 11,900 × 5,700 × 3,200 mm

Machine Weight: Approx. 11,000 kg (excluding extraction system, chiller, and parts conveyor)

Please Note:

The information was obtained to the best of our abilities and - where possible - from the manufacturers.

It is given in good faith, however, its accuracy cannot be guaranteed. Accordingly, it will not form a representation or constitute contractual terms.

Specific tooling must be requested before purchasing because in most cases the offered machines are still in production when the pictures were taken.

We advise you to check any vital details!
