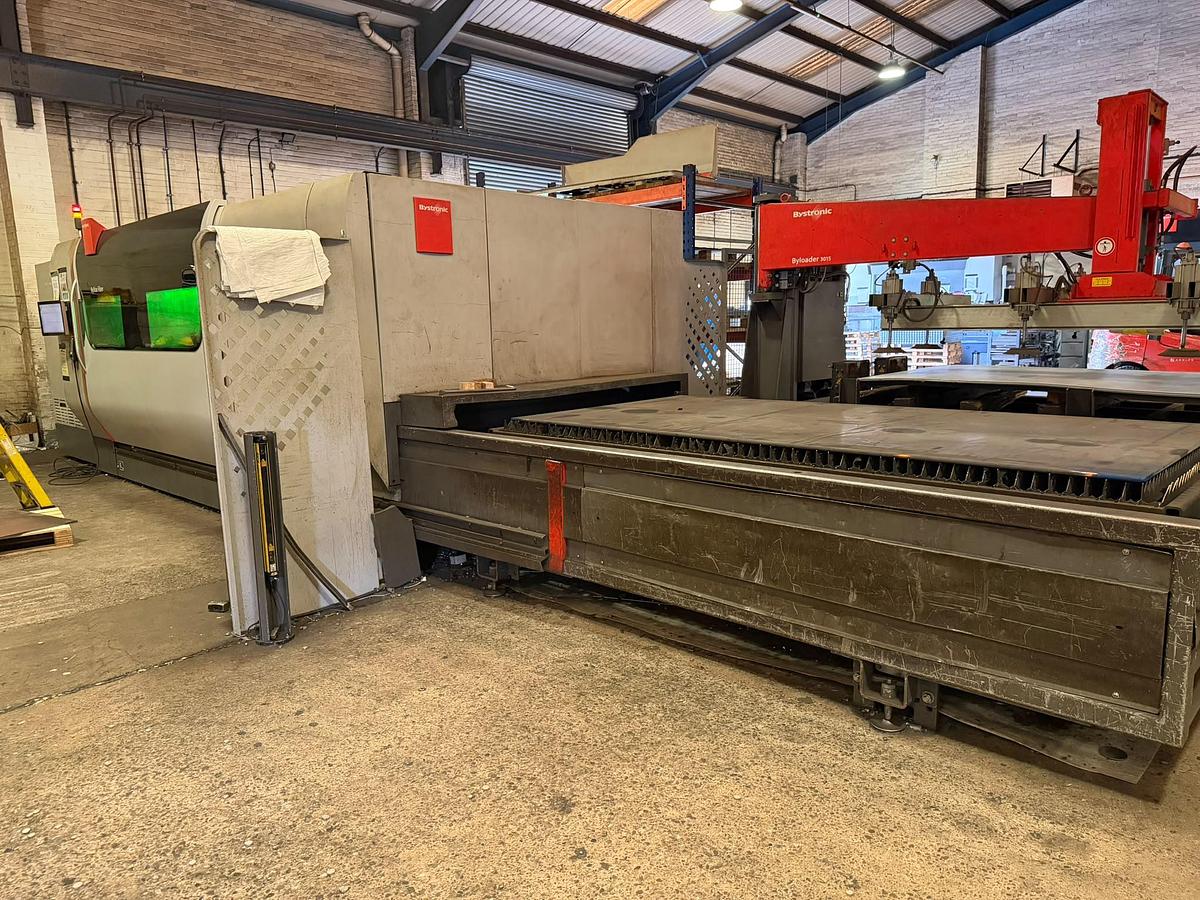

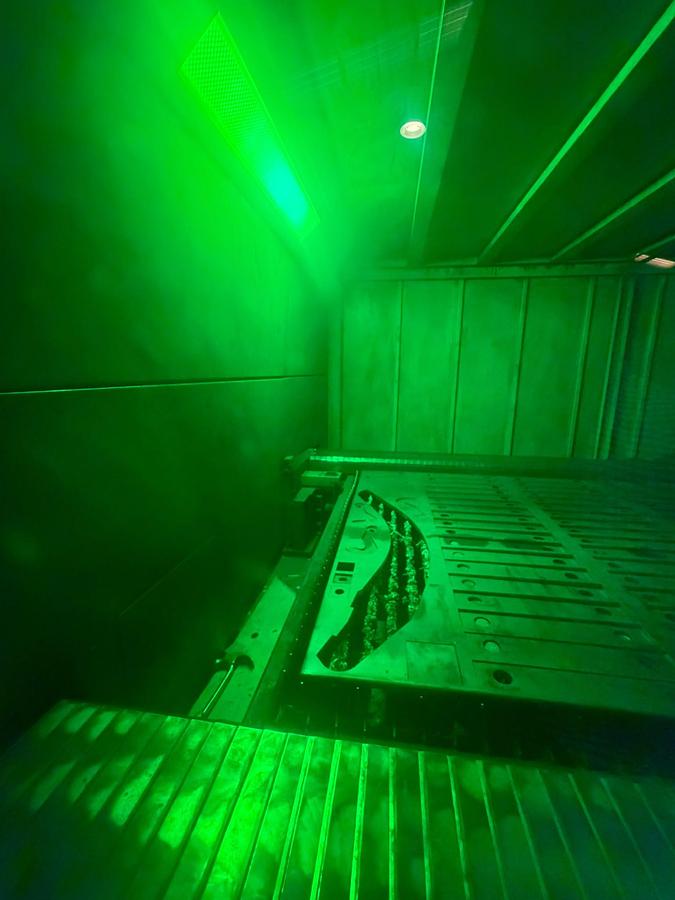

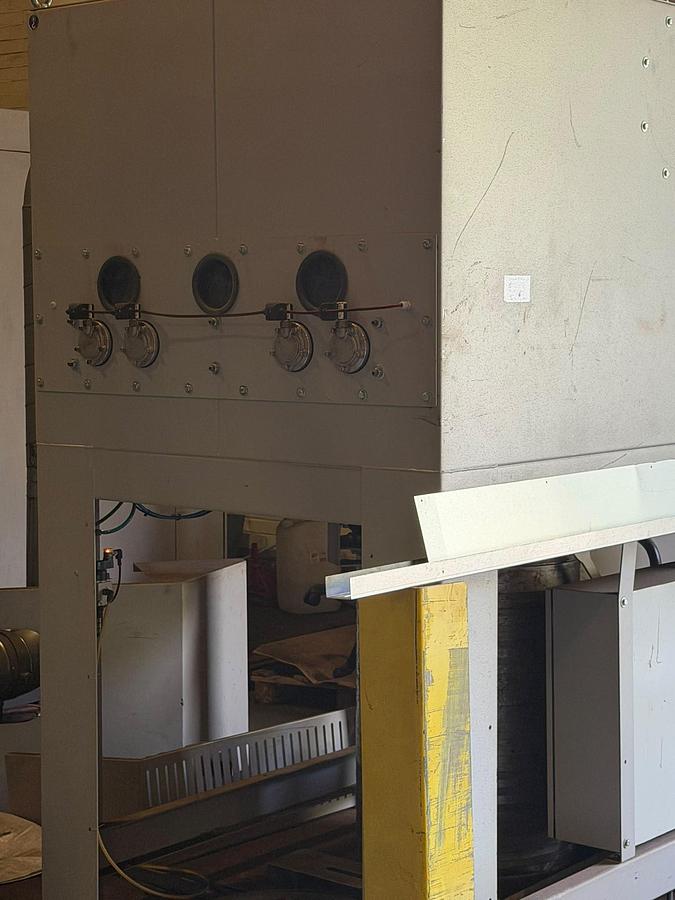

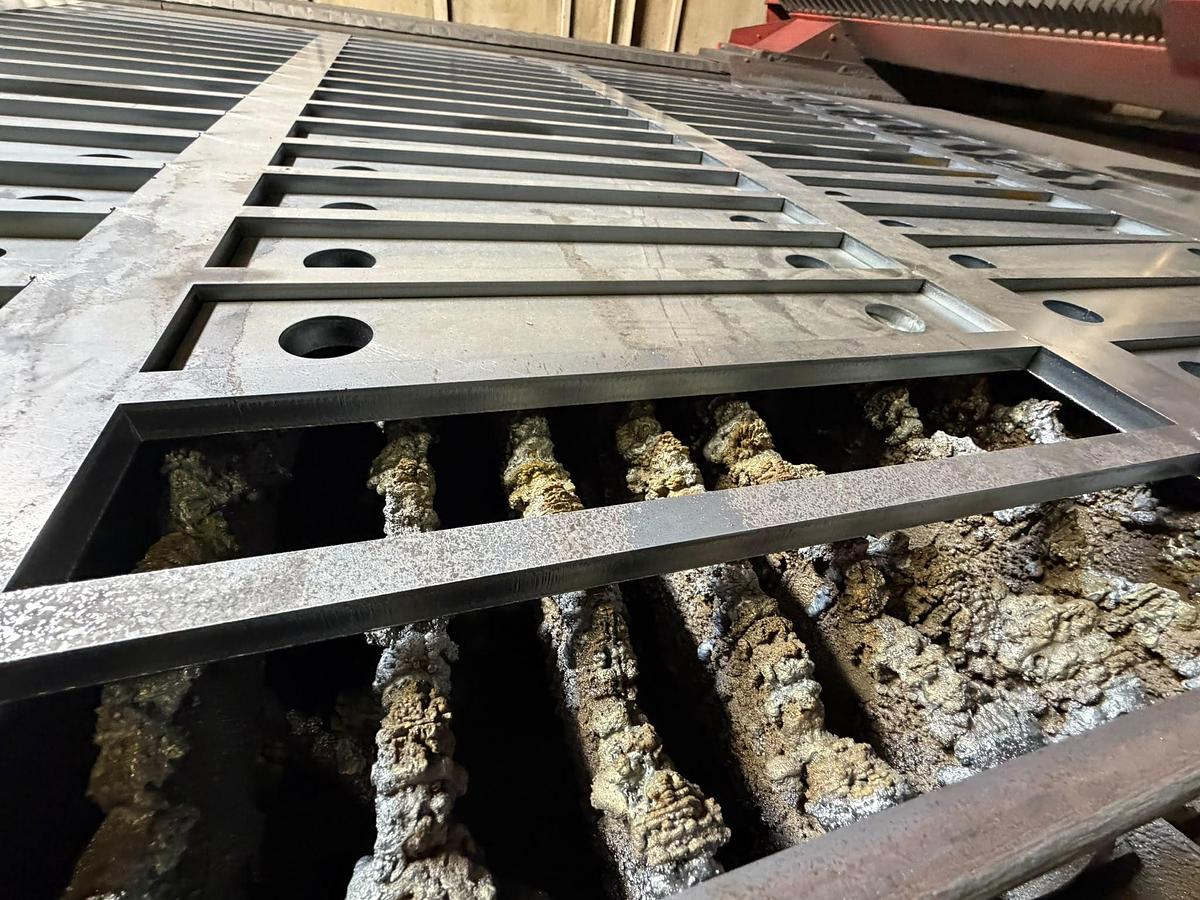

2019 BYSTRONIC ByStar Fiber 3015 12KW + ByLoader

For sale: Bystronic ByStar Fiber 3015 high-performance fiber laser cutting machine equipped with a powerful 12 kW fiber laser source and automatic ByLoader 3015 loading system. Designed for high-speed, high-precision sheet metal processing with excellent productivity and automation.

Available : 2026

The machine can be inspected under power and demonstrated in operation by appointment.

Technical Specifications

Manufacturer: Bystronic

Model: ByStar Fiber 3015

Laser Type: Fiber Laser

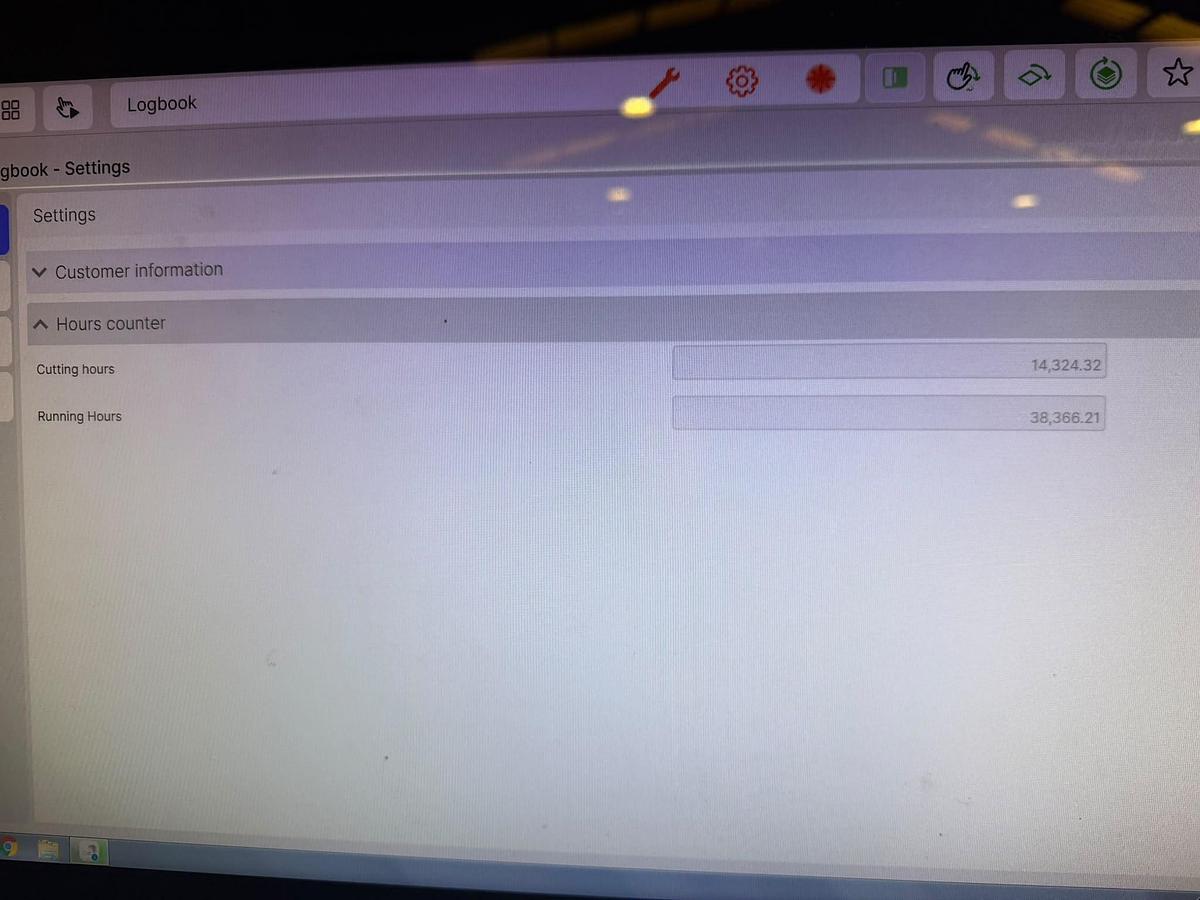

Cutting hours : 14.324h

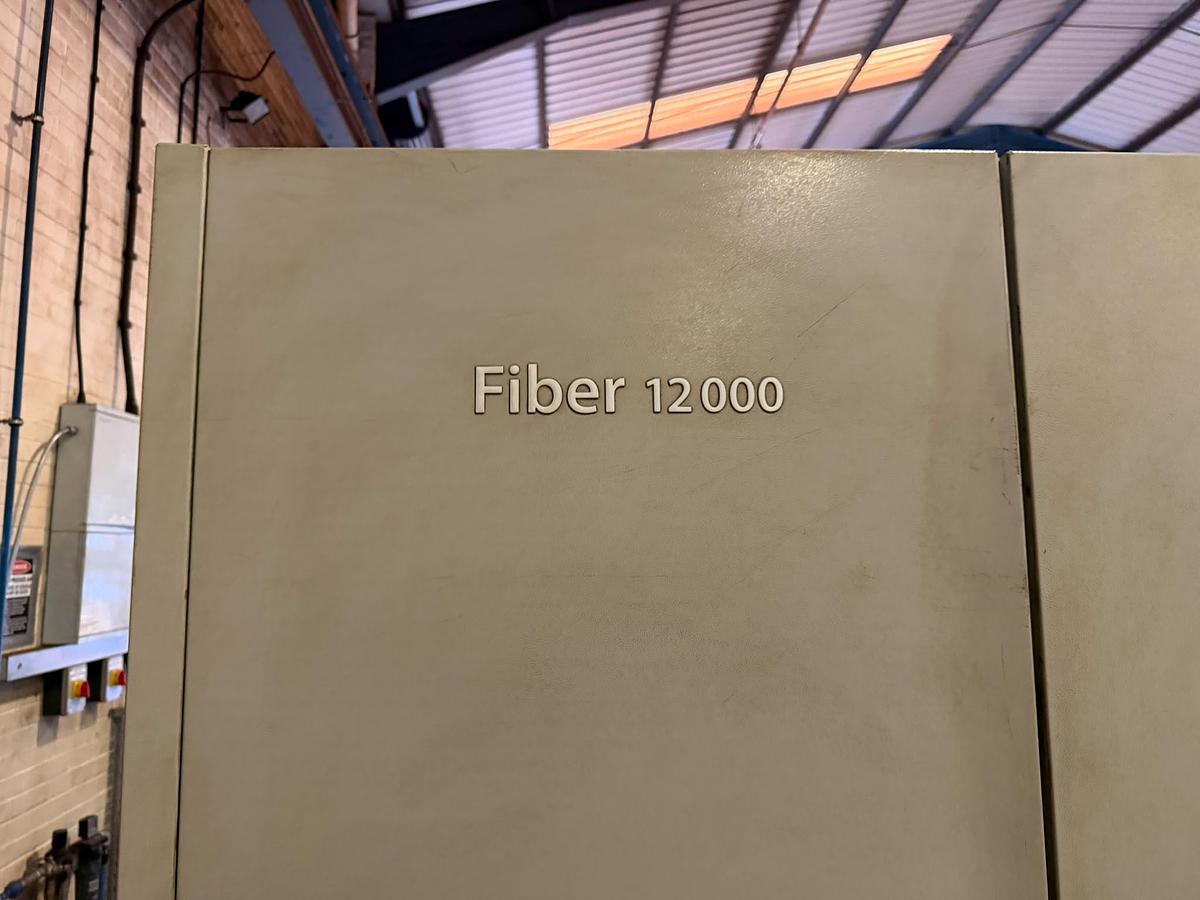

Laser Power: 12 kW (adjustable from 1.2 to 12 kW)

Sheet Size: 3,000 × 1,500 mm

Working Area (X × Y × Z): 3,100 × 1,580 × 100 mm

Maximum Positioning Speed: 120 m/min (X/Y), 170 m/min simultaneous

Positioning Repeatability: ±0.025 mm

Maximum Workpiece Weight: 1,100 kg

Shuttle Table Changeover Time: 25 seconds

Average Power Consumption: Approx. 27 kW (including extraction and chiller)

Options

BeamShaper

Power cut

Parameter wizard

Maximum Cutting Capacities

Mild Steel: up to 25 mm (up to 30 mm with BeamShaper option)

Stainless Steel: up to 30 mm

Aluminium: up to 30 mm

Brass: up to 15 mm

Copper: up to 12 mm

Maximum cutting capacities may vary depending on material quality and machine condition.

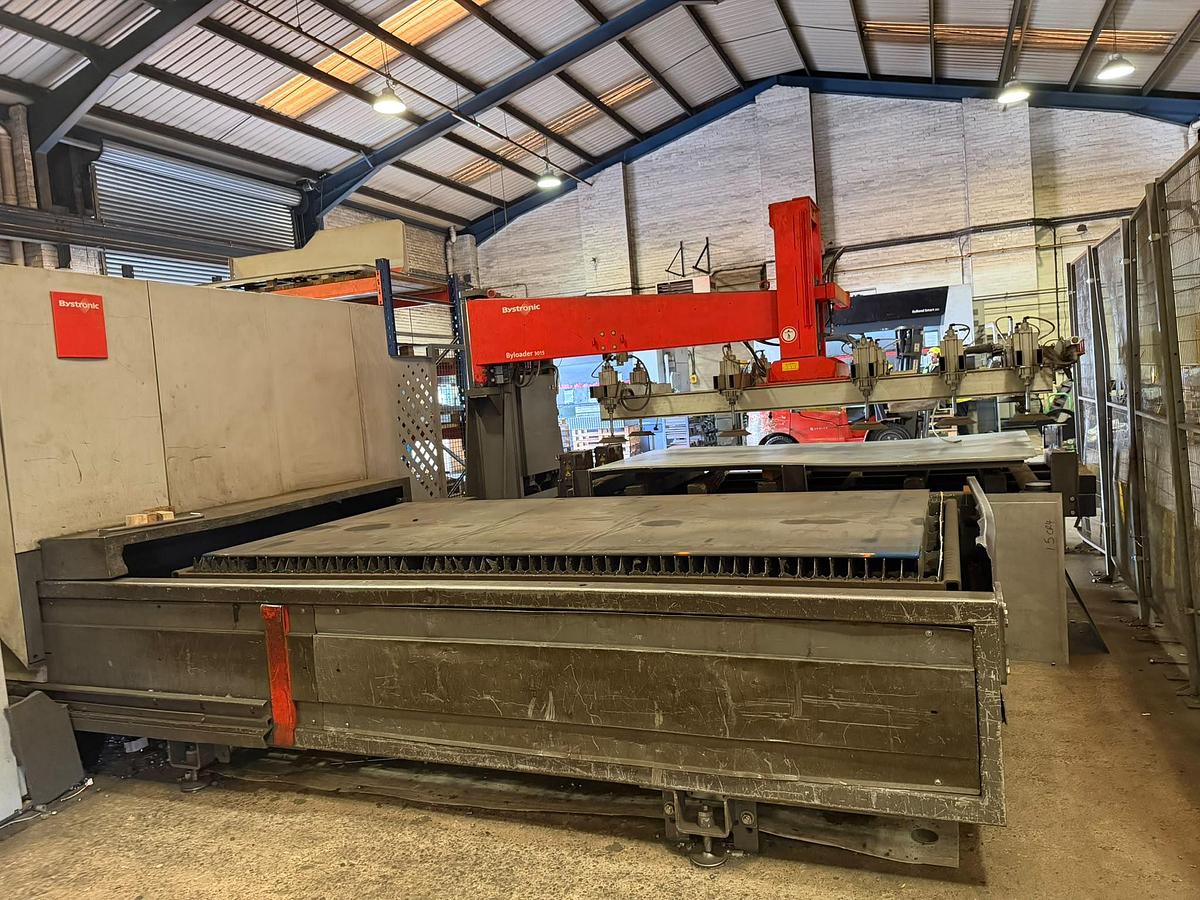

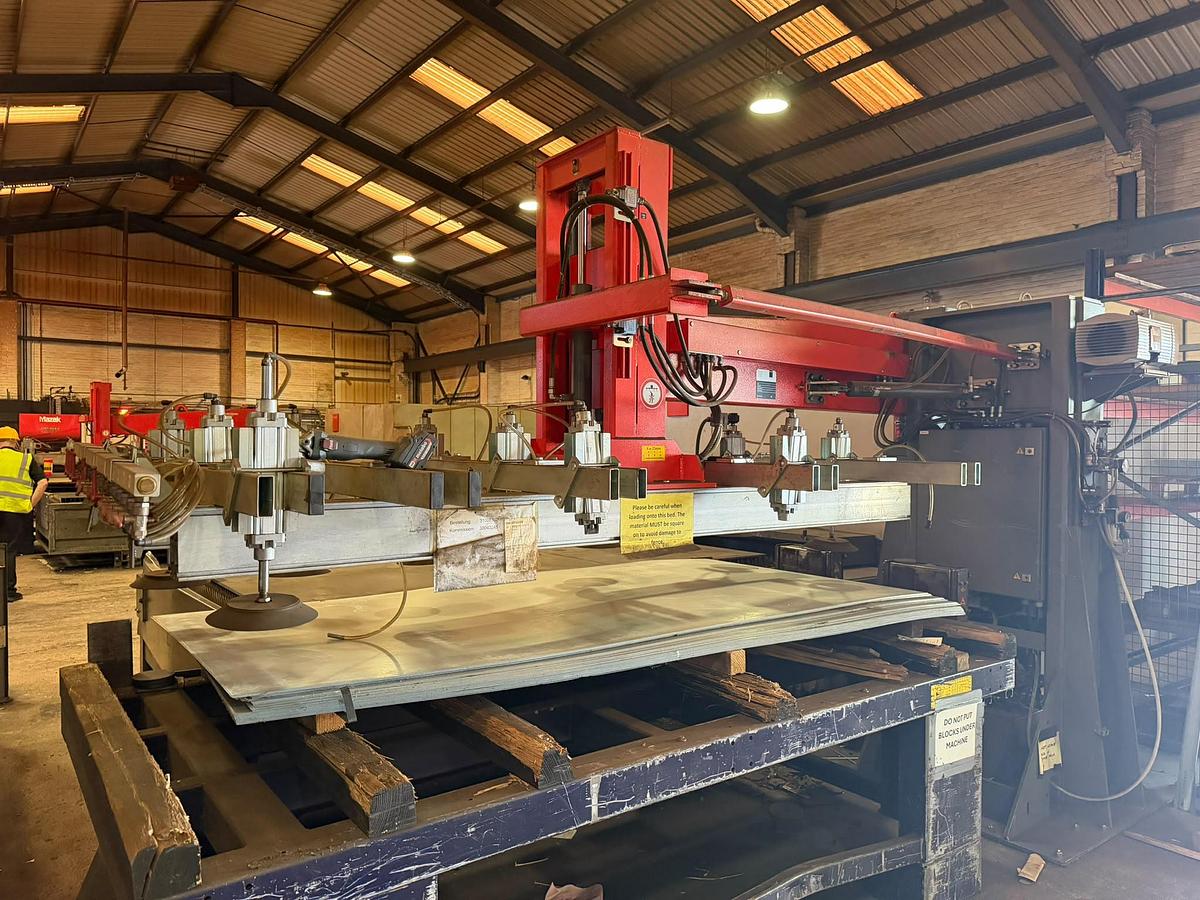

ByLoader 3015 Automatic Loading System

Sheet size: 3,000 × 1,500 mm

Sheet thickness: 0.8 – 25 mm

Maximum sheet weight: 890 kg

Enables automated loading and increased production efficiency

Dimensions & Weight

Machine Dimensions (L × W × H): Approx. 11,900 × 5,700 × 3,200 mm

Machine Weight: Approx. 11,000 kg (excluding extraction system and conveyor)

Please Note:

The information was obtained to the best of our abilities and - where possible - from the manufacturers.

It is given in good faith, however, its accuracy cannot be guaranteed. Accordingly, it will not form a representation or constitute contractual terms.

Specific tooling must be requested before purchasing because in most cases the offered machines are still in production when the pictures were taken.

We advise you to check any vital details!
