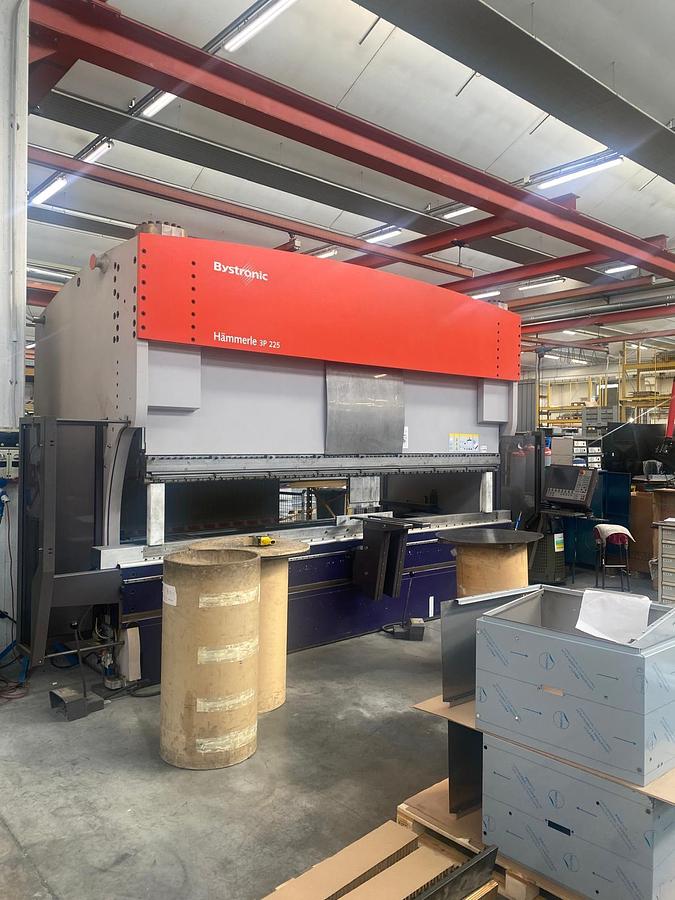

2007 Bystronic Beyeler P225/410

For sale: Bystronic Beyeler P225/410 hydraulic press brake, manufactured in 2007 in Germany.

This high-quality CNC press brake offers a 225-ton pressing force and a 4,100 mm bending length, making it ideal for precision sheet metal fabrication in steel, stainless steel, and aluminum.

The machine is renowned for its robust construction, reliability, and accuracy, making it suitable for both small batch production and high-volume manufacturing environments.

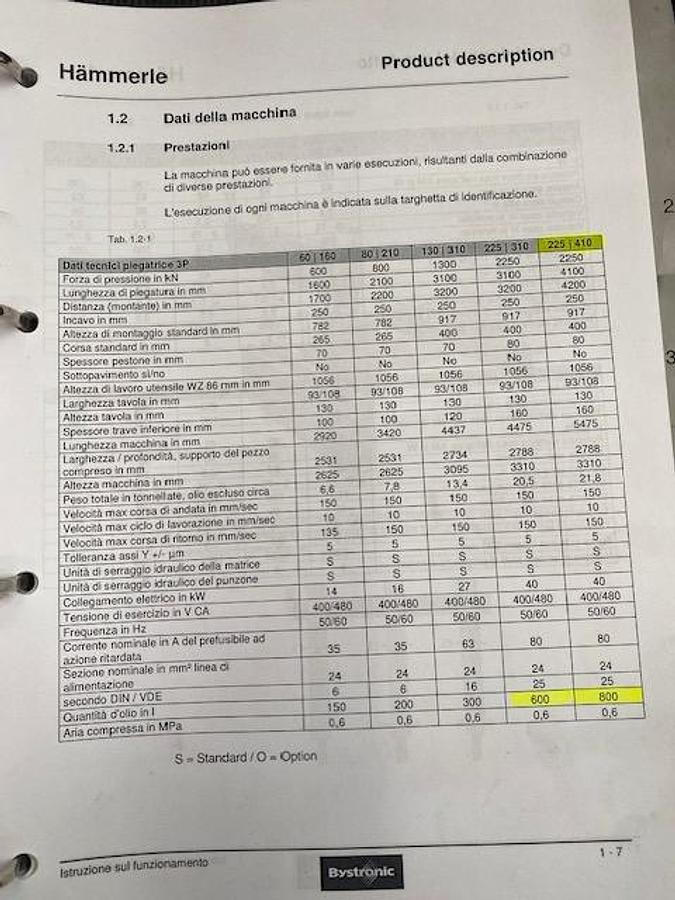

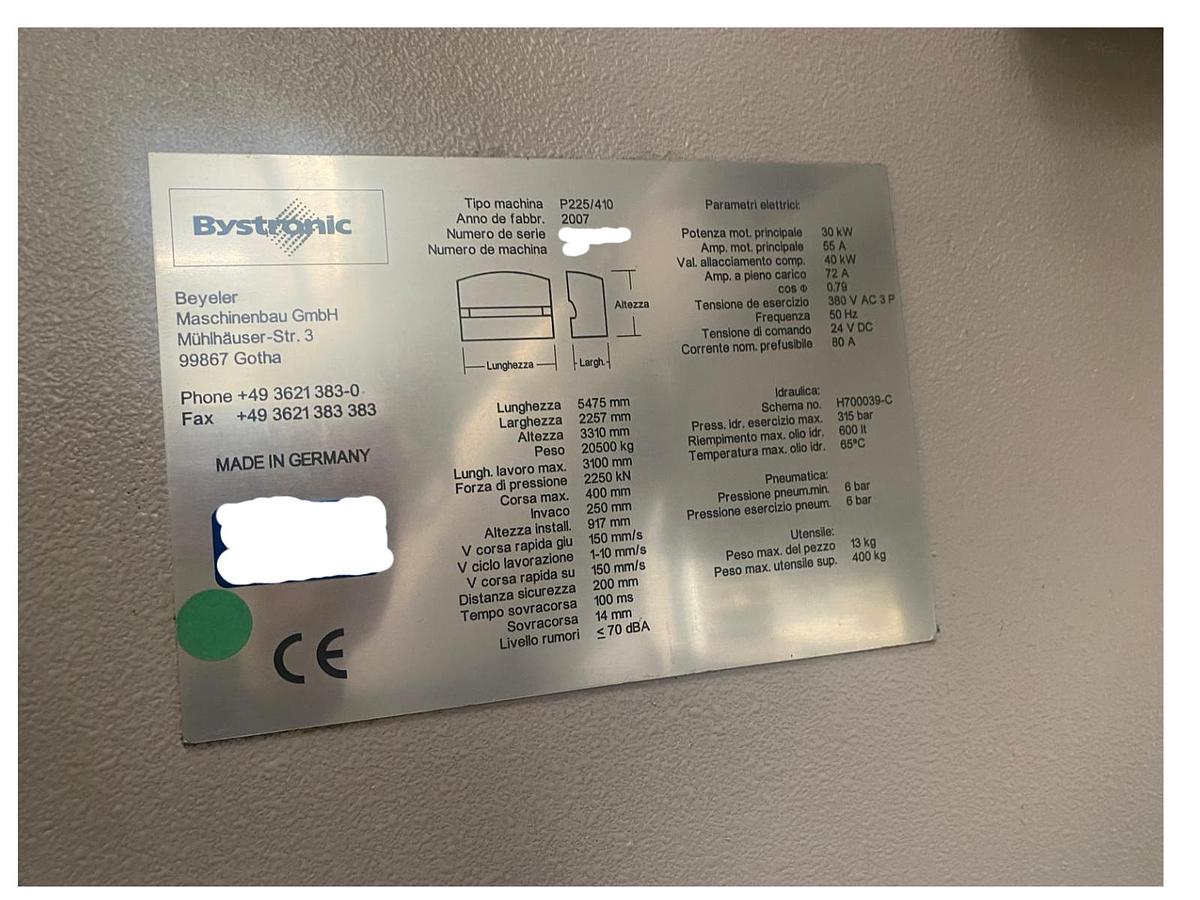

Technical Specifications

General Information

• Manufacturer: Bystronic Beyeler
• Model: P225/410
• Year of Manufacture: 2007
• Country of Origin: Germany
• CE Marked: Yes

Capacity

• Press Force: 225 tons (2,250 kN)
• Maximum Bending Length: 4,100 mm
• Stroke: 400 mm
• Throat Depth: 250 mm
• Daylight Opening / Installation Height: 917 mm

Speed

• Fast Approach Speed: 150 mm/s
• Working Speed: 1 - 10 mm/s
• Return Speed: 150 mm/s

Dimensions & Weight

• Overall Length: 5,475 mm
• Overall Width: 2,257 mm
• Overall Height: 3,310 mm
• Machine Weight: 20,500 kg

Electrical Specifications

• Main Motor Power: 30 kW
• Connected Load: 40 kW
• Power Supply: 380 V, 3 Phase
• Frequency: 50 Hz
• Control Voltage: 24 V DC

Hydraulic System

• Maximum Hydraulic Pressure: 315 bar
• Hydraulic Oil Capacity: 600 liters
• Maximum Oil Temperature: 65°C

Pneumatic System

• Minimum Air Pressure: 6 bar
• Operating Air Pressure: 6 bar

Tooling

• Maximum Upper Tool Weight: 400 kg
• Maximum Workpiece/Tool Weight: 13 kg

Please Note:

The information was obtained to the best of our abilities and - where possible - from the manufacturers.

It is given in good faith, however, its accuracy cannot be guaranteed. Accordingly, it will not form a representation or constitute contractual terms.

Specific tooling must be requested before purchasing because in most cases the offered machines are still in production when the pictures were taken.

We advise you to check any vital details!
