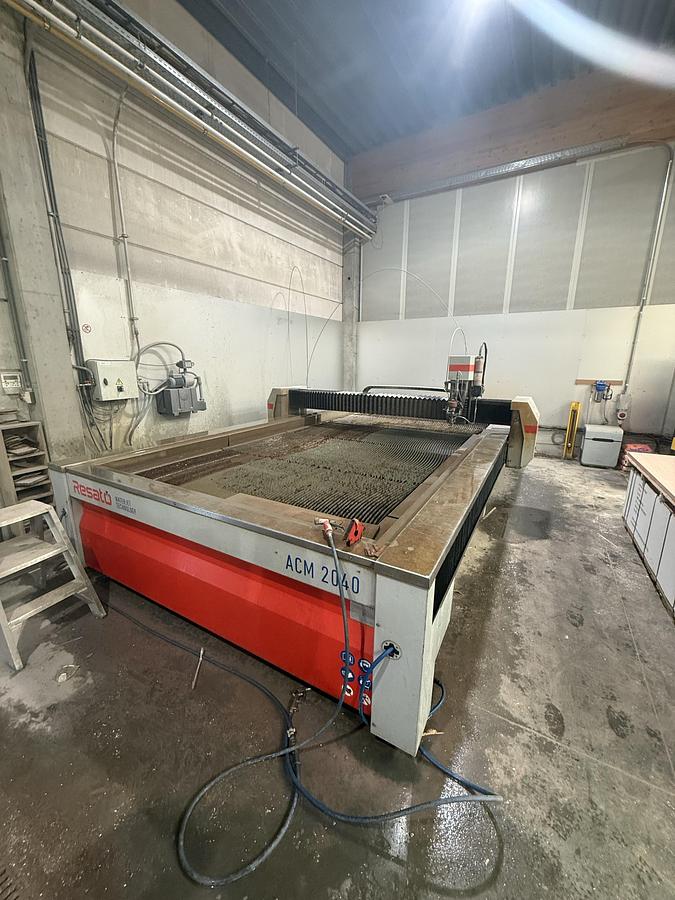

2017 RESATO ACM 2040

The Resato ACM 2040 is a high-pressure abrasive waterjet cutting system designed for precision cutting of metals, composites, stone, glass, plastics, and other materials. The machine features a cutting area of approximately 2,020 × 4,020 mm and operates with a Resato PJ-4-4000 high-pressure pump capable of delivering up to 4,000 bar pressure and 3.8 l/min flow rate. The system provides high cutting accuracy, minimal heat-affected zones, and is suitable for complex shapes and thick materials.

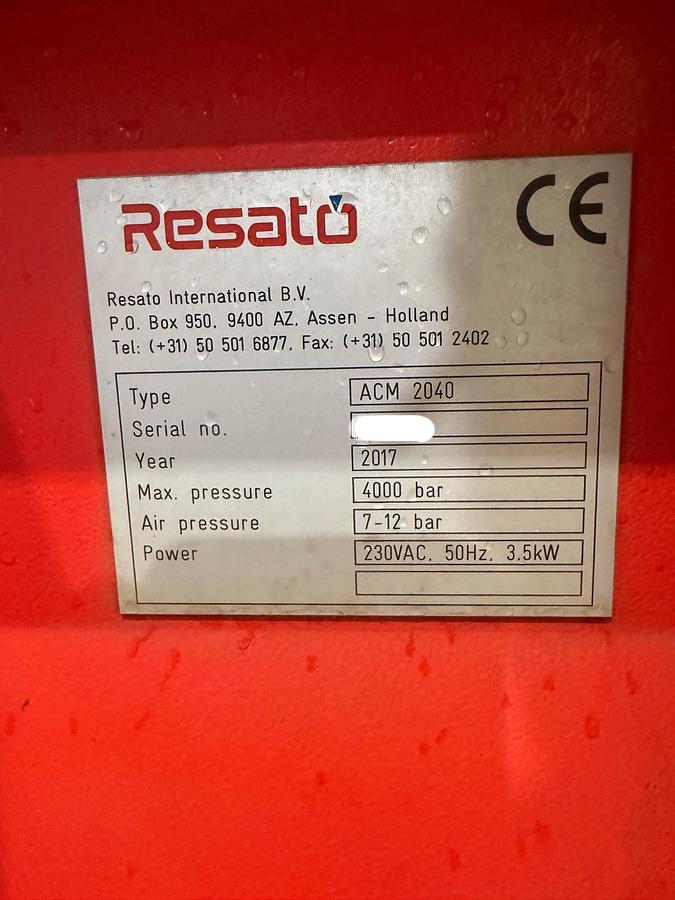

Key specifications:

• Technology: Abrasive Waterjet Cutting

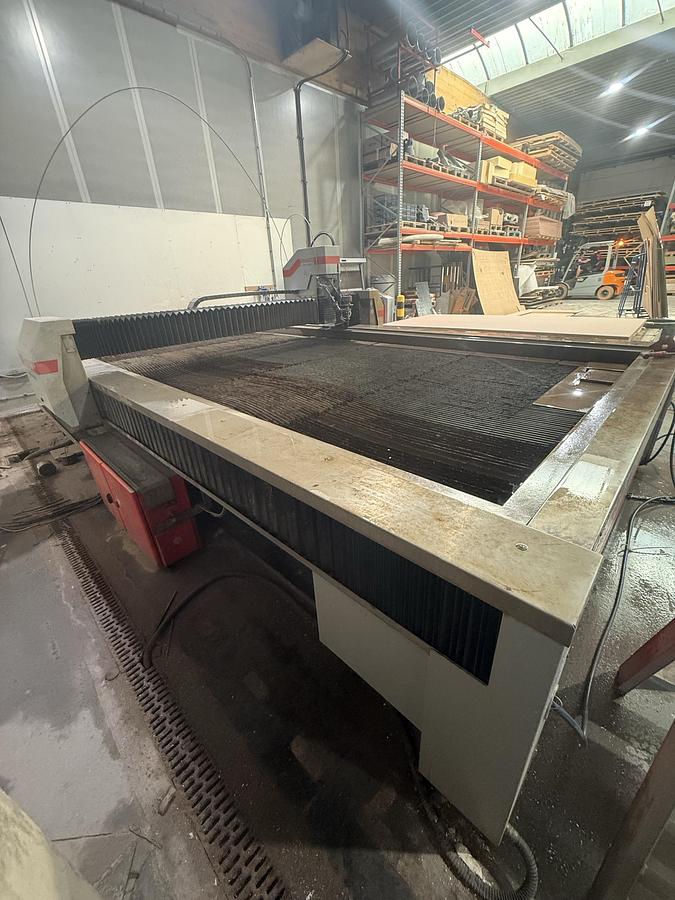

• Cutting area: 2,020 × 4,020 mm
• Maximum pressure: 4,000 bar

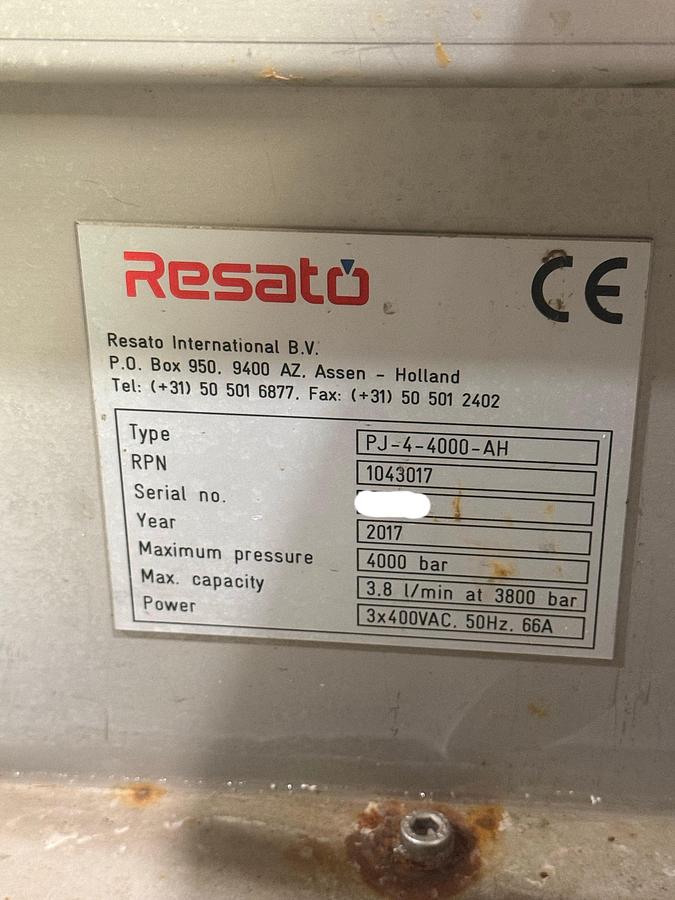

• Pump capacity: 3.8 l/min at 3,800 bar
• Pump power: 30 kW
• Year of manufacture: 2017
• Application: Precision cutting of metal, stone, glass, plastics, and composites

Available : 12/2026

Please Note:

The information was obtained to the best of our abilities and - where possible - from the manufacturers.

It is given in good faith, however, its accuracy cannot be guaranteed. Accordingly, it will not form a representation or constitute contractual terms.

Specific tooling must be requested before purchasing because in most cases the offered machines are still in production when the pictures were taken.

We advise you to check any vital details!
