2003 ARBURG Allrounder 720S 3200-2100
Specifications
| Manufacturer | ARBURG |
| Model | Allrounder 720S 3200-2100 |
| Year | 2003 |
| Condition | Used |
| Stock Number | 00065 |
| Clamping force (max.) | 3200 kN |
| Mold opening force (max.) | 130 kN |
| Opening stroke (max.) | 700 mm |
| Ejector force (max.) | 100 kN |
| Ejector stroke (max.) | 250 mm |
| Screw diameter (mm) | 60/70/80 |
| Effective screw length (L/D) | 23/20/17.5 |
| Shot volume (cm³) | 792/1078/1407 |
| Injection pressure (bar) | 2500/2000/1530 |
| Injection flow (cm³/s) | 224/306/400 |
| Distance between platens (max.): | 1000–1400 mm |
Description

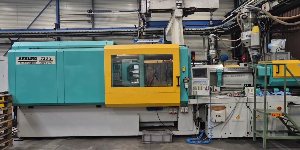

Arburg injection moulding machine available for immediate purchase.
Machine is still in operation.
Viewing possible upon appointment.

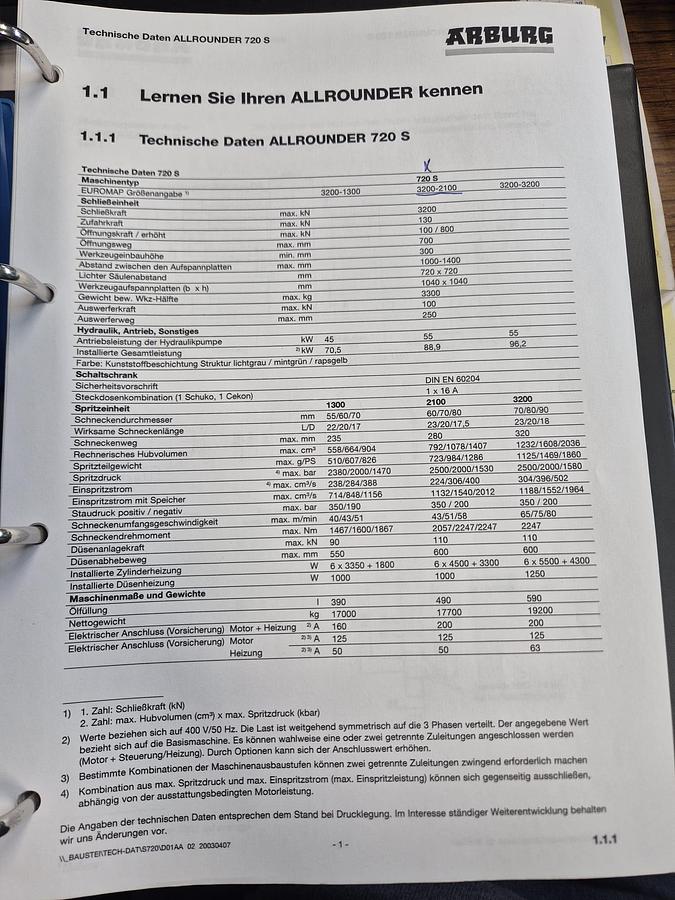

Full technical details in the attached documents/pictures.
