2018 Bystronic Xpert 650/6200
Specifications
| Manufacturer | Bystronic |
| Model | Xpert 650/6200 |
| Year | 2018 |
| Condition | Used |
| Tonnes (ton) | 650 |
| Bend length (mm) | 6200 |
| Upper table stroke (mm) | 365 |
| Distance between shoulders (mm) | 5100 |
| Notch (mm) | 500 |
| Number of manual turrets | 2 |
| Automatic X1 axis | Yes |
| Automatic Z1 Z2 axes | Yes |
| Automatic X2 axis | Yes |
| X1 axis travel (mm) | 200 |
| X-axis speed (mm/s) | 500 |
| X-axis positioning accuracy (mm) | 0.02 |
| Axis Travel (R) (mm) | 250 |
| R-axis speed (mm/s) | 150 |
| R-axis positioning accuracy (mm) | 0.1 |
| Z-axis speed (mm/s) | 800 |
| Y-axis lift speed (mm/s) | 95 |
| First-fill hydraulic oil (lt) | 1300 |
| The lower table width (mm) | 110 |
| Main motor power (kW) | 45 |
| Automatic cnc-controlled forming | Yes |
| Cambered "Wila" system | Yes |
| "Wila" dock type | Automatic |
| Die attachment type | Hydraulic |
| Photocells (model and brand) | FAST BEND G2 |
| Type of control | Graphic video |
| Model control | BYVISION BENDING |
| Type of tools | BYSTRONIC E ROLLERI |
| Dimensions of machine: L x W x H (mm) | 6960X3880X2645 |
Description

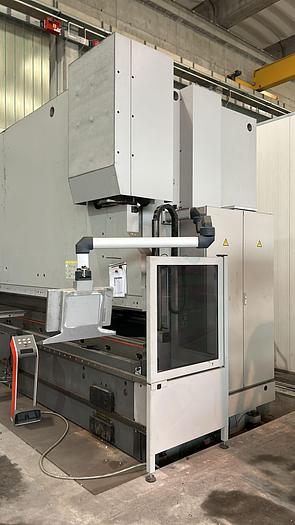

Excellent press brake with 650T bending force and 6200 bending length.
This machine is in very good condition, immediately available and can be inspected under power.

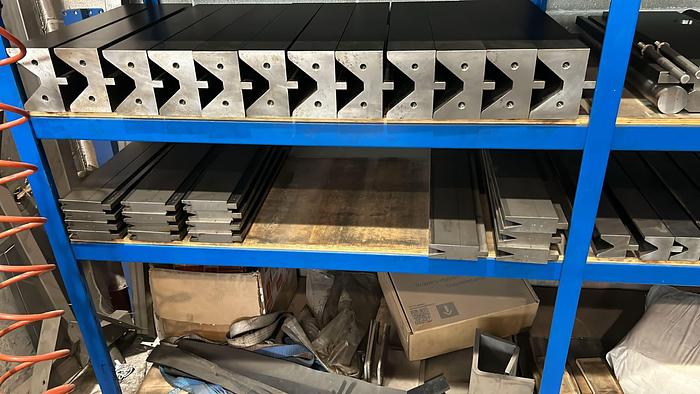

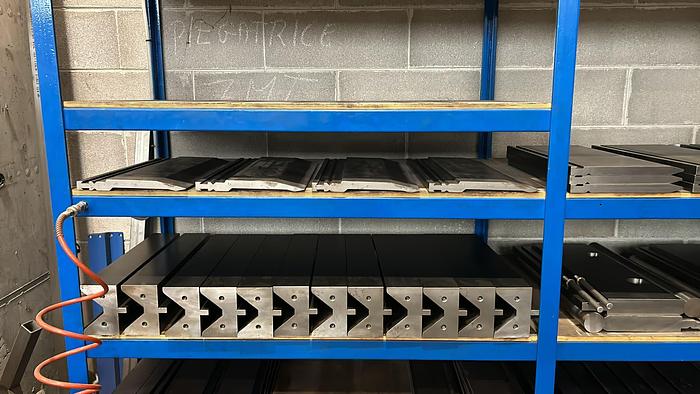

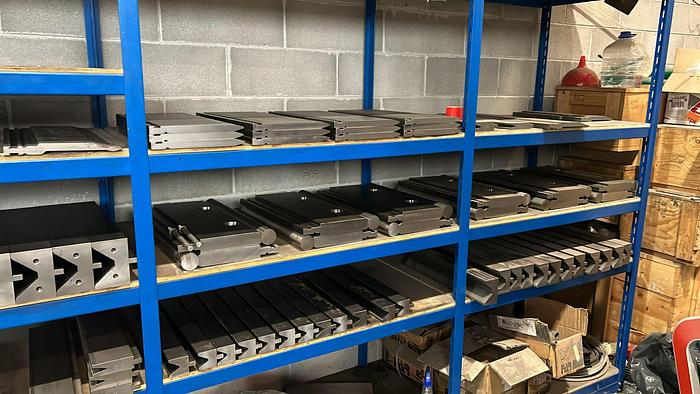

Extensive set of tooling available as well.
More information on request.
