2006 AMADA LC-1212 Alpha III 2KW


Contact us for price




ModelLC-1212 Alpha III 2KW


Machine is in good condition and can be inspected under power.

Manufactured in December 2005, start using in 2006

Cutting hours: 13890h

Availbility: from 09/2022

More information on request

Technical specifications:

max. Movement range X / Y / Z: 1270 x 1270 x 300 mm

With repositioning X / Y / Z: 2540 x 1270 x 300 mm

max. sheet thickness: 9 mm

max. Table load: 220kg

Cutting speed: 0 - 20 m/min

Positioning speed X / Y / Z axis: 80 / 80 / 60 m/min

Positioning Accuracy: +/-0.01mm at 500mm

Repeatable positioning accuracy: +/-0.005 mm

Electrical connection: 400 V, 50 Hz, 3 phases

Total connected load: 55 kVA

Air consumption: 250 l/min

Machine weight: 6,000 kg

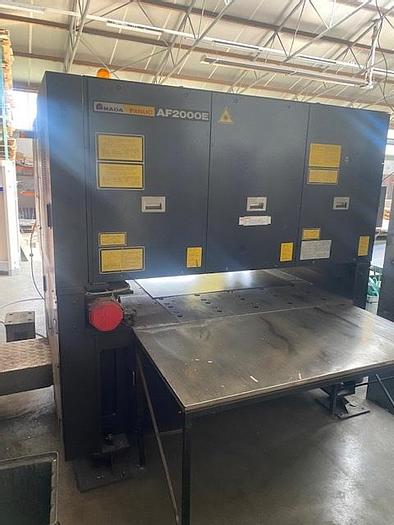

Resonator type: Fanuc AF 2000 E

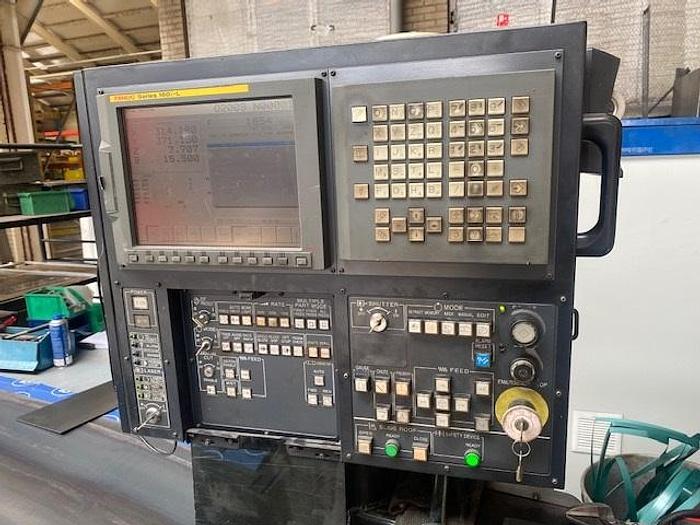

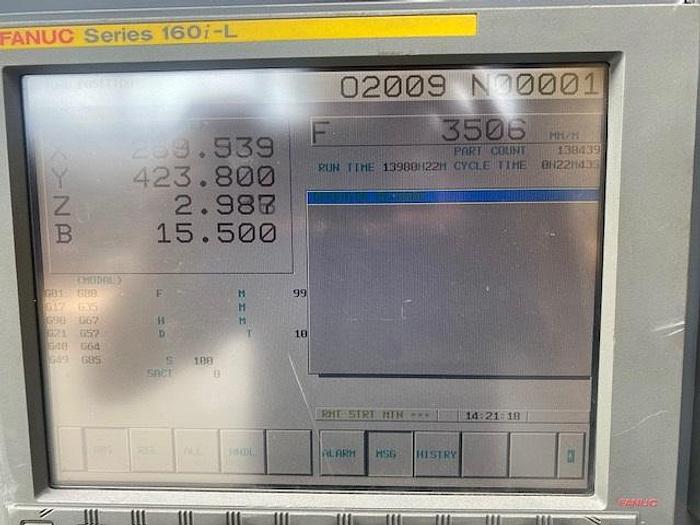

Control: Fanuc FS 160iL

Please note: The information on this page has been obtained to the best of our knowledge and belief. This information is given in good faith, but accuracy cannot be guaranteed. Accordingly, this information is not binding and does not constitute a contractual condition. We recommend that you check all essential details during an inspection of the machine. In order to save unnecessary travel costs for our customers, in most cases we suggest to organize a live video inspection
