2014 AMADA LC-3015 AJ Fiber 2KW + Automation
Specifications
Manufacturer | AMADA |
Model | LC-3015 AJ Fiber 2KW + Automation |
Year | 2014 |
Condition | Used |
Description

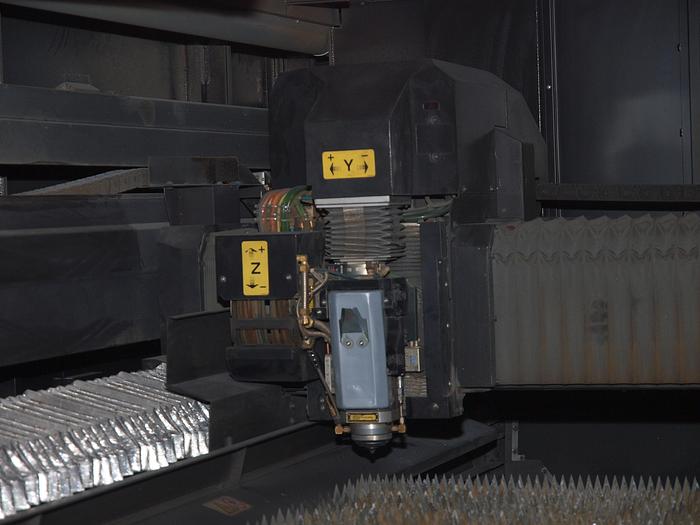

Amada LC-3015 AJ 2kW Fiber laser + MP Flexit automation
Machine is in good condition
Can be inspected under power.
IMMEDIATELY AVAILABLE
Working hours: 43000h
Cutting hours: 21000h
Technical specifications:
Shift type (X and Y axes) movable optics
Type of control at the same time axes X, Y, Z,
and axis B and CF
Punching range X axis 3070 mm
Y axis 1,550 mm
Z axis 100 mm
Punching speed X and Y axis 0 - 120 m / min
The maximum weight of the material is 920 kg
Drive type (X, Y, Z axes) Linear drive
Table height 940 mm
Machine dimensions (machine only) L x W x H 6043 x 2900 x 2350 mm
Net weight 11,200 kg
Installation year 2014.04
Automatic nozzle changer
conveyor
Model laser resonator - AJ2000
Rated power 2000 W
Resonator dimensions L x W x H 1760 x 1210 x 1530 mm
Weight 800 kg
Herding DELTAComp 1500-8 / 9 SB 7.5 kW filter
Weight 1200 kg

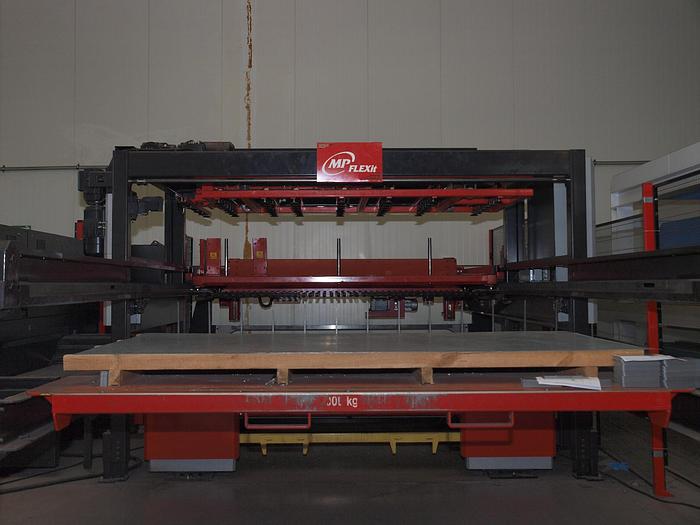

LKI MP Flexit 7 kW feeder
Weight 4300 kg
Total connected load 33 kW
More information on request
