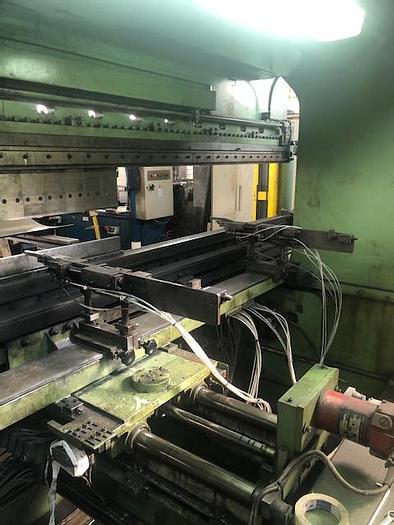

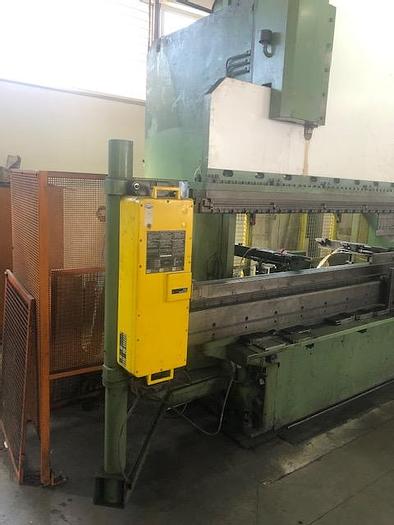

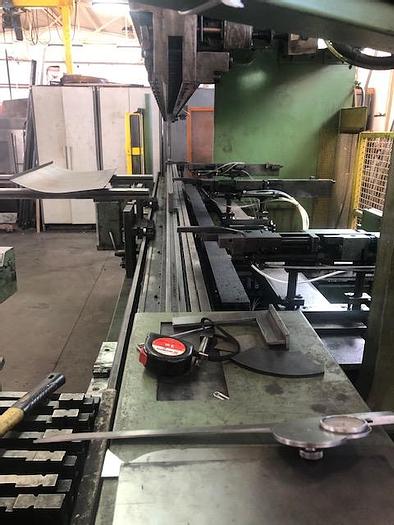

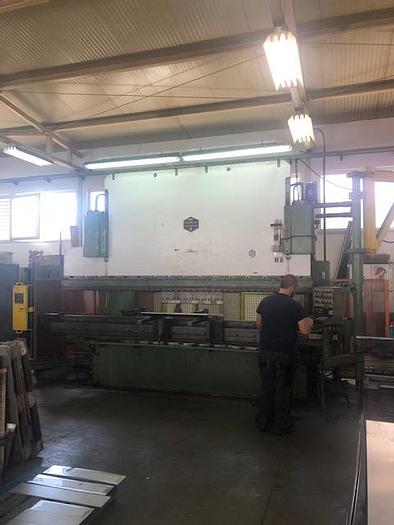

1981 Bystronic Hammerle AP NC 200 SID (4M/200T)

Specifications
Manufacturer | Bystronic |
Model | Hammerle AP NC 200 SID (4M/200T) |
Year | 1981 |
Condition | Used |
Max. Bending force ,, | 200t |
Max. Bending width | 4000 mm |
Description
Hämmerle NC press 200 t, 4000 mm (3-point bending press).
- Sheet thickness .............. 0.8 - 15mm (according to diagram)
- Stroke (Y - axis) ................ 195mm, speeds 100/72 mm / sec.
- NC back stop (X axis) width 0 - 400mm, 400-800 mm, 800-1200 mm
- Hydraulic cushion on the pushrod
- Hydraulic clamping of upper and lower tools
- Mobile front consoles
- Rear support brackets with lifting aid
- Operation: hand / foot

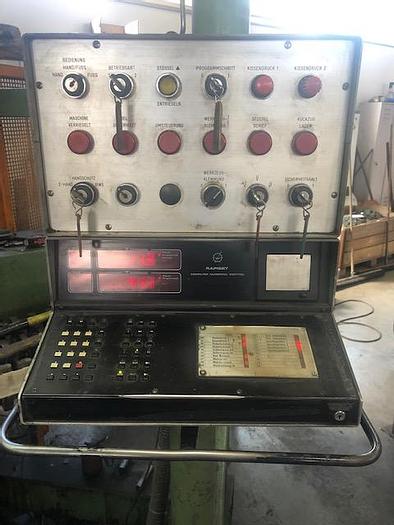

- NC programming by the Rapiset control
(X, Y and RT - angular dimension, ..., NC programs max. 99 blocks)
- Main engine .......... 18.5kW
- Motor for lifting rams ...... 5.5kW
- Oil - Tank ......... 750 lit.
- Electrical connection 3x380 V
- Gabarit dimensions LxWxH ......... 5.530x3020x3400mm
- Machine dimensions ....... 15 -ton.
On 2018 Gen. Revision of Hydraulics and Pneumatics System
- Exchange all Hawe hydraulic valves with new ones
- Exchange all Donaldson hydraulic El. solenoid valves with new Rexroth,
- Exchange all seals in the hydraulic cylinder with new ones,
- Gen. Revision all hydraulic pumps,
- Built-in additional cooler in the hydraulic system.
- Exchange all relays in the control logic with new ones in the electrical cabinet.
