2000 HANDTMANN PBZ NT 600 AS Machining center

Location

United Kingdom

No longer available

Specifications

ManufacturerHANDTMANN
ModelPBZ NT 600 AS Machining center
Year2000
ConditionUsed

Description

Machine: Machining Center

Brand: HANDTMANN

Model: PBZ NT 600 AS, 5 Axis

Manufactured: year 2000


MAXIMUM FLEXIBILITY FOR 6-SIDED PROFILE MACHINING

FEATURES MAXIMUM FLEXIBILITY AND GREAT COST EFFECTIVENESS IN MACHINING ALUMINIUM AND STEEL.

A FLEXIBLE CLAMPING SYSTEM FOR MACHINING DIFFERENT PROFILE CROSS SECTIONS AND UP TO 14 TOOL SLOTS ALLOWS FOR A WIDE RANGE OF APPLICATIONS UP TO 6 METRES IN LENGTH.

Qrel02hp

AN INTEGRATED SAWING UNIT FOR SPATIAL CUTS COMPLETES THE HIGHLY EFFICIENT PBZ-NT MACHINE CONCEPT.


5-AXIS CONCEPT

6-SIDED MACHINING COMPLETE FROM BAR STOCK UP TO 6 METERS/ 255"

FIXED PORTAL

X-AXIS TRAVEL: 255"

Y-AXIS TRAVEL: 29.5"

Z-AXIS TRAVEL: 11.8"


ROTATIONAL ANGLE:

A-AXIS +/- 120 DEG.

C-AXIS +/- 200 DEG.


PART LENGTHS UP TO 6 METRES/ 255" IN ALUMINIUM & STEEL

WORKPIECE CROSS SECTION MAX. 300 X 300 MM (WXH)

SPINDLE MOTOR 25 H.P., 28,000 RPM

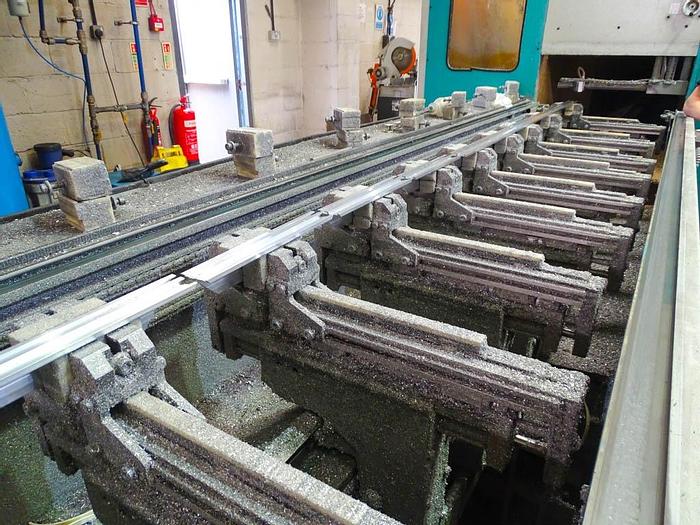

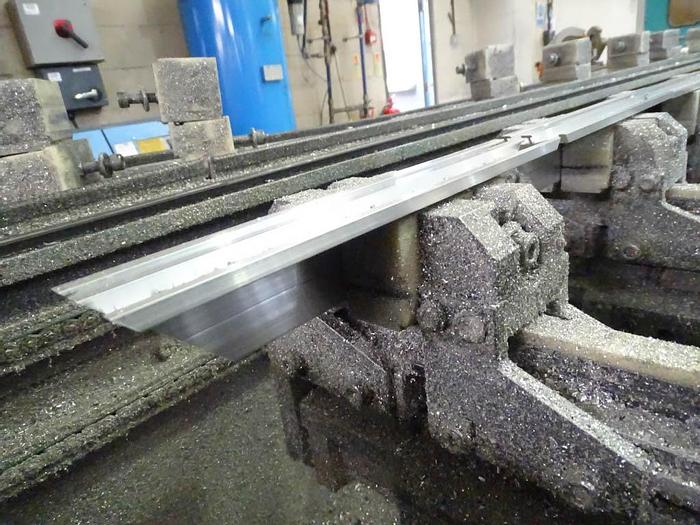

CNC CONTROLLED CLAMPING SYSTEM, VARIABLE NUMBER OF CLAMPING JAWS

AUTOMATIC POSITIONING OF CLAMPING VICES

SAW BLADE DIAMETERS UP TO 500 MM

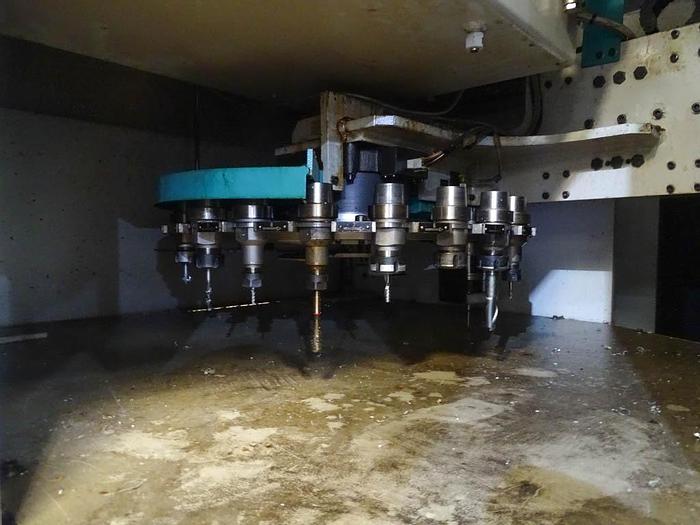

TOOL CHANGER: DISC TYPE TOOL MAGAZINE MAX. 14 SLOTS


TOOL INTERFACE HSK 50 TAPER

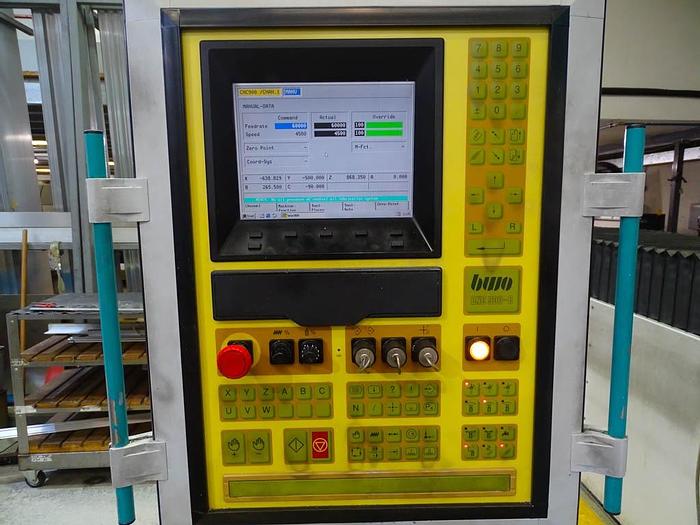

CONTROL: BWO CNC900C

Manuals

Tooling

Full Service History by Handtmann


Weight: 15000 kg

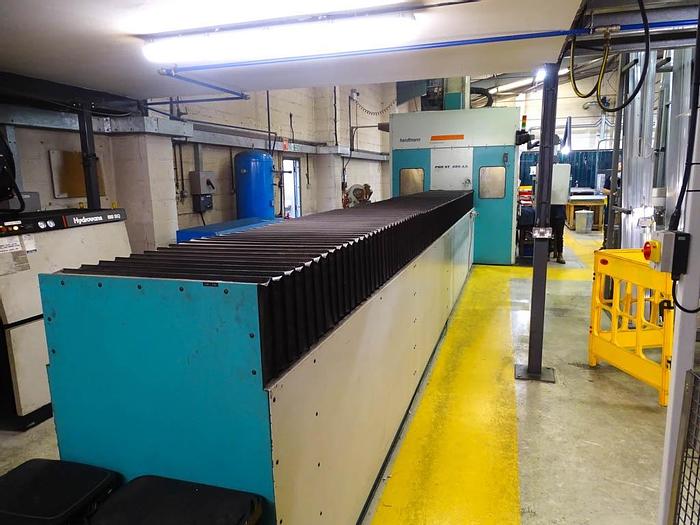

Floor Plan Dimensions:


Machine 2.2m

Loader 8m loader

Right Side for Material Exit 5.6m

Total Length 15.8m


Depth: 2.7m

Working Height: 4.4m


Under power and can be viewed in production
