2011 NEGRI BOSSI M82 10000H - 12100
Vendu
Caractéristiques
| Fabricant | NEGRI BOSSI |
| Modèle | M82 10000H - 12100 |
| Année | 2011 |
| Condition | D'occasion |
| Screw diameter | 120 mm |
| Screw L/D ratio | 20° |
| Theoretical injection capacity | 6900 cm³ |
| SHot weight PS | 6280g |
| Injection rate | 1090 cm³/s |
| Max pressure on material | 1755 bar |
| Screw lorque | 8000Nm |
| Screw speed | 120 |
| Plasticising capacity PS | 150 g/s |
| Screw driving power | 85 kW |
| Barrel healing zones | 6 |
| Healing capacity | 55 kW |
| Nozzle contact force | 210 kN |
| Clamping force | 10000 kN |
| Locking force | 11000 kN |
| Mould max opening stroke | 1200 mm |
| Mould height min.max | 500 - 1200 mm |
| Size of plates HxV | 1800 x 1580 mm |
| Distance between bars | 1250 x 1000 mm |
| Hydraulic ejector force | 175 kN |
| Hydraulic ejector stroke | 400 mm |
| Dry cycles | 16 |
| Rating of electric motor | 256 kW |
| Machine weight | 35500 + 13000 kg |
| Overall machine dimensions | 12620 x 2760 x 2305 mm |
Description
Machine is in good condition and can be inspected under power upon appointment.

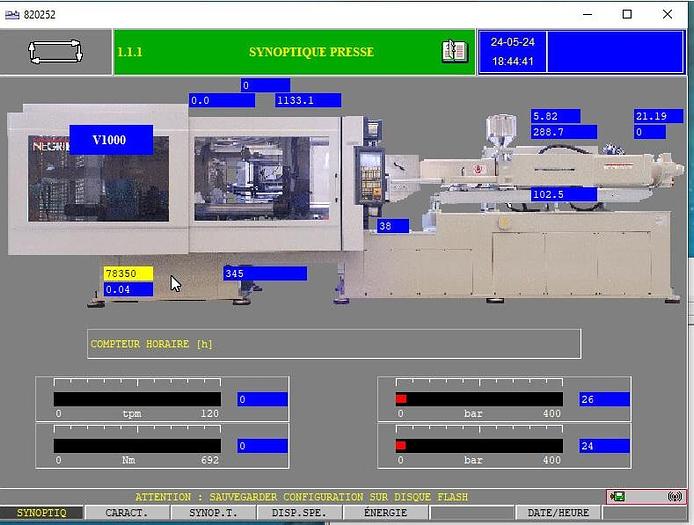

Working hours: 78350
Immediately available.
